Brand:Xianchen rice flour sieve shaker
Description:XC series three-D rotary vibrating screen is a special screening equipment with international level, high precision and fine particle on the basis of advanced technology from home and abroad. Its advantages are as follows: fully closed, no dust emission, continuous operation; high screening precision, efficiency and utilization rate of screen; small volume, light in weight, start quickly, low noise; easy operation, convenient maintenance, long service life of screen; the discharge port direction changed along the circumferential direction. The machine is widely used in screening fine powder, micro powder, submicron powder, bar, dry and wet materials.
Origin:China
Model:XC
MOQ:1Sets
FOB:perSets750--3800USD
Port:Qingdao,Shanghai
Payment Terms:T/T
Supply Ablility:1Sets
Delivery Time:2017-05-21
Packaging Details:Outer packing is plywood case , which is up to the international standards. Inner packing is moisture-proof and water-proof membrane. All of package are wrapped by 0.55mm steel belt to further strengthen .
Product detail:
|
Model 型號 |
Power 功率(KW) |
Sieve surface diameter 篩面直徑(?) |
Effective area 有效面積(m²) |
Net layer 網層數
|
|
XC-600-1s XC-600-2s XC-600-3s |
0.25 0.55 0.55 |
560 |
0.2375 |
1 2 3 |
|
XC-800-1s XC-800-2s XC-800-3s |
0.55 0.75 0.75 |
760 |
0.4416 |
1 2 3 |
|
XC-1000-1s XC-1000-2s XC-1000-3s |
0.75 1.1 1.5 |
930 |
0.6789 |
1 2 3 |
|
XC-1200-1s XC-1200-2s XC-1200-3s |
1.1 1.5 1.75 |
1130 |
1.0382 |
1 2 3 |
|
XC-1500-1s XC-1500-2s XC-1500-3s |
1.5 2.2 2.2 |
1430 |
1.6052 |
1 2 3 |
|
XC-1800-1s XC-1800-2s XC-2800-3s |
2.2 2.2 3.0 |
1730 |
2.3523 |
1 2 3 |
Fundamental principles: rotary motion of the motor change into the horizontal, vertical, and inclined sports (there-D) through the installation of the ends of the weight(imbalance weight) on the vibration motor， and then transfer the motion to the surface of the screen. The trajectories of the material can be changed by changing the phase angle of the weight.
Chacteristics:
1.The widest range of screening: applicable to all kinds of particles, powder, and slurry filter. Screening reaching 500-600 mesh, and filter reaching 5 microns
2,The mesh not block: a variety of specially designed screen of the cleaning device make the probability of blocking the mesh approach the minimum.
3.Single layer and multi-layer separation: single XC vibrating screen can choose 1-5 screen, and can carry out the sorting of 2-6 grades. Single layer filtration, once to achieve the requirements
4.Easy to change the screen: XC vibrating screen has many kinds of grid structure according to different needs; the time of changing screen is shortened to 3-5 minutes, which saves 30-60 minutes comparing to other types; no deformation of the mesh, long service life of screen, high efficiency

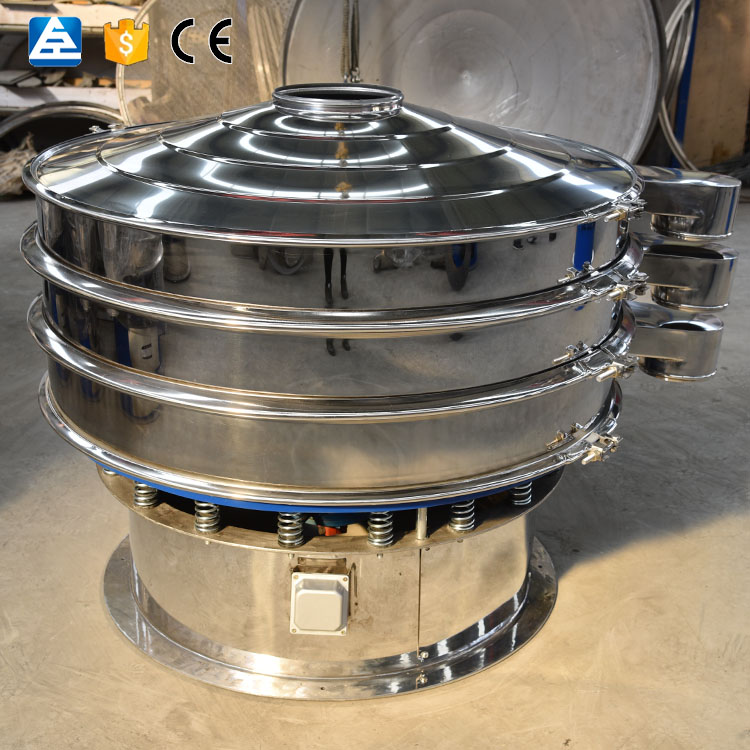

Detail image:
