Product detail:
------A specialized plastic extruder filter screen global supplier
''WHY CHOOSE XC FILTER SCREEN''
--Specialized in Plastic Extrusion Field
--100% Stainless Steel With 302 ,304 & 316 Grade
--Extensive Products Range
--Widest Range Of Size (4 Mesh To 1500 Mesh)
--Ready-to-use (5mm To 800mm Diameter)

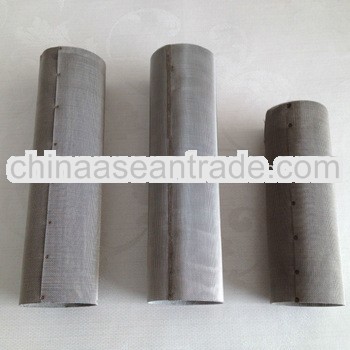

Stainless Steel Filter Wire Mesh Packs
1.Material:Stainless Steel (SS304#,SS316#,SS316L# etc.)
2.Mesh:1-1500mesh
3.Size:Customize as per customers' requirements

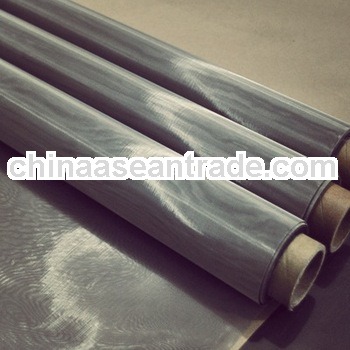

Specification List of Stainless Steel Wire Mesh
1.Plain Weave Wire Mesh
Mesh | Wire dia | Aperture |
1x1 | 2.03 | 23.37 |
2X2 | 1.60 | 11.10 |
3X3 | 1.37 | 7.09 |
4X4 | 1.60 | 4.75 |
4X4 | 1.19 | 5.16 |
5X5 | 1.04 | 4.04 |
6X6 | .89 | 3.35 |
8X8 | .71 | 2.46 |
10X10 | .64 | 1.91 |
10X10 | .51 | 2.03 |
12X12 | .584 | 1.52 |
12X12 | .508 | 1.60 |
14X14 | .584 | 1.22 |
14X14 | .508 | 1.30 |
16X16 | .457 | 1.13 |
18X18 | .432 | .98 |
20X20 | .508 | .76 |
20X20 | .406 | .86 |
24X24 | .356 | .70 |
30X30 | .330 | .52 |
30X30 | .305 | .54 |
30X30 | .229 | .62 |
35X35 | .279 | .45 |
40X40 | .254 | .38 |
50X50 | .229 | .28 |
50X50 | .203 | .31 |
60X60 | .191 | .23 |
60X60 | .178 | .25 |
70X70 | .165 | .20 |
80X80 | .165 | .15 |
80X80 | .140 | .18 |
90X90 | .127 | .16 |
100X100 | .114 | .14 |
100X100 | .102 | .15 |
100X100 | .089 | .17 |
110X110 | .1016 | .1295 |
120X120 | .0940 | .1168 |
150X150 | .0660 | .1041 |
160X160 | .0635 | .0965 |
180X180 | .0584 | .0838 |
200X200 | .0533 | .0737 |
250X250 | .0406 | .0610 |
270X270 | .0406 | .0533 |
300X300 | .0381 | .0457 |
325X325 | .0356 | .0432 |
400X400 | .0254 | .370 |
500X500 | .0254 | .0254 |
635X635 | .0203 | .0203 |
