Brand:aa
Product detail:

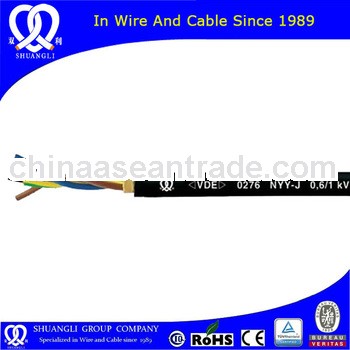

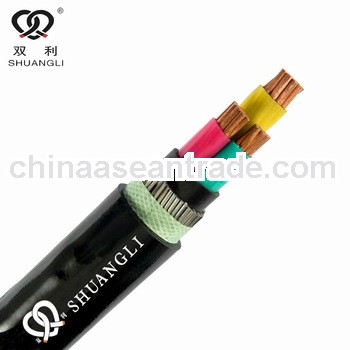

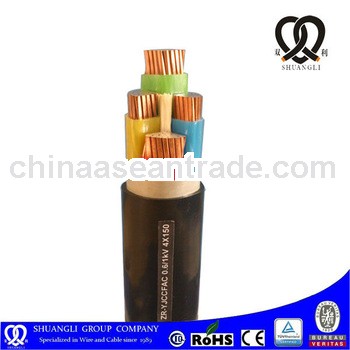

Conductors: Plain annealed copper conductors
Insulation: PVC (Polyvinyl-Chloride)
Core identification: 2 Core (blue & brown)
3 Core (blue, brown & Green/Yellow),
4 Core (black, brown, grey & green/yellow),
5 Core (black, blue, brown, grey & green/yellow),
7 Core and above (white numbered cores & 1 green/yellow)
Sheath/Jacket: PVC (Polyvinyl-Chloride)
Colour: Black
Voltage: 600/1000v
Operating temperature: Maximum 70°C, minimum bending 0°C
Types: O - Excluding protective earth conductor. J - Including protective earth conductor
Standard: VDE0271 Power cables. Specifications for power cables 0.6/1kv and above for special applications
DIN VDE 0276-603 Power cables Part 603 distribution cables of rated voltage 0.6/1kv
DIN VDE 0276-627 Power cables Part 627 multicore & multipair cables for installation above and below ground
IEC60502 Power cables with extruded insulation and their accessories for rated voltages from 1kV to 30kV
Applications: Energy cables for use in open air, underground, indoors and in cable ducts
Minimum Bending Radius: 15 x Overall Diameter for Solid Conductors. 12 x Overall Diameter for Stranded Co
Conductor stranding: Re: circular solid
Rm: circular stranded
Sm: sectorial stranded
| Size Sq.mm | Conductor type | Number of cores | Nominal overall diameter (mm) | Weight kg/km |
| 16 | Re | 1 | 11 | 260 |
| 25 | Rm | 1 | 12.5 | 370 |
| 35 | Rm | 1 | 13.5 | 490 |
| 50 | Rm | 1 | 15.5 | 640 |
| 70 | Rm | 1 | 17 | 830 |
| 95 | Rm | 1 | 19 | 1110 |
| 120 | Rm | 1 | 20.5 | 1350 |
| 150 | Rm | 1 | 22.5 | 1650 |
| 185 | Rm | 1 | 24.5 | 2040 |
| 240 | Rm | 1 | 27.5 | 2610 |
| 300 | Rm | 1 | 30.5 | 3300 |
| 400 | Rm | 1 | 33.5 | 4200 |
| 500 | Rm | 1 | 38 | 5160 |
| 630 | Rm | 1 | - | - |
| 1.5 | Re | 2 | 11.5 | 190 |
| 2.5 | Re | 2 | 12.5 | 230 |
| 4 | Re | 2 | 14 | 310 |
| 6 | Re | 2 | 15 | 370 |
| 10 | Re | 2 | 16.5 | 500 |
| 16 | Re | 2 | 18.5 | 660 |
| 25 | Rm | 2 | 22 | 1000 |
| 35 | Rm | 2 | 25 | 1300 |
| 50 | Rm | 2 | 28 | 1700 |
| 70 | - | 2 | - | - |
| 95 | - | 2 | - | - |
| 1.5 | Re | 3 | 12 | 210 |
| 2.5 | Re | 3 | 13 | 260 |
| 4 | Re | 3 | 14.5 | 360 |
| 6 | Re | 3 | 16 | 440 |
| 10 | Re | 3 | 17.5 | 600 |
| 16 | Re | 3 | 19.5 | 820 |
| 25 | Rm | 3 | 23.5 | 1250 |
| 35 | Rm | 3 | 26.5 | 1640 |
| 50 | Rm | 3 | 30 | 2160 |
| 70 | Sm | 3 | 30 | 2450 |
| 95 | Sm | 3 | 34 | 3330 |
| 1.5 | Re | 4 | 13 | 250 |
| 2.5 | Re | 4 | 14 | 310 |
| 4 | Re | 4 | 15.5 | 420 |
| 6 | Re | 4 | 17 | 530 |
| 10 | Re | 4 | 19 | 730 |
| 16 | Re | 4 | 21.5 | 1030 |
| 25 | Rm | 4 | 25.5 | 1550 |
| 35 | Rm | 4 | 28.5 | 2050 |
| 50 | Rm | 4 | 33 | 2740 |
| 70 | Sm | 4 | 34.5 | 3220 |
| 95 | Sm | 4 | 39 | 4390 |
| 120 | Sm | 4 | 42.5 | 5380 |
| 150 | Sm | 4 | 48 | 6580 |
| 185 | Sm | 4 | 52.5 | 8220 |
| 240 | Sm | 4 | 60 | 10570 |
| 300 | Sm | 4 | 68 | 13250 |
| 1.5 | Re | 5 | 13.5 | 290 |
| 2.5 | Re | 5 | 15 | 360 |
| 4 | Re | 5 | 17 | 500 |
| 6 | Re | 5 | 19.5 | 640 |
| 10 | Re | 5 | 20.5 | 880 |
| 16 | Re | 5 | 23 | 1220 |
| 1.5 | Re | 7 | 14.5 | 340 |
| 2.5 | Re | 7 | - | - |
| 4 | Re | 7 | - | - |
| 6 | Re | 7 | - | - |
| 10 | Re | 7 | - | - |
| 16 | Re | 7 | - | - |
| 1.5 | Re | 12 | 17.5 | 400 |
| 2.5 | Re | 12 | 19.5 | 560 |
| 1.5 | Re | 19 | 20 | 590 |
| 2.5 | Re | 19 | 22 | 800 |
| 1.5 | Re | 27 | 23.5 | 790 |
| 2.5 | Re | 27 | 26 | 1090 |
| 1.5 | Re | 37 | 26 | 1030 |
| 2.5 | Re | 37 | 29 | 1450 |
| 1.5 | Re | 40 | 27.5 | 1110 |
| 2.5 | Re | 40 | 30.5 | 1570 |
Introduction of Shuangli Group:
Wuhan head office
Guangdong High Voltage cable and Aluminum Alloy base
Guangxi raw material base
Shuangli Group is a specialized Wire and Cable group, consisted of four companies. Guangdong Shuangli is specialized in High voltage and Aluminum Alloy cable research and production.While Wuhan Shuangli majors in Aluminum Cables----Bare, Insulated, Armoured. and so on. With Guangxi Shuangli Aluminum Co.,Ltd and Wuhan the second production base put into use, Shuangli Group was become more and more competitive in Wire and Cable market.
Shuangli is recongized as the Aluminum Alloy 8000 series researching and production base in China.
