Product detail:

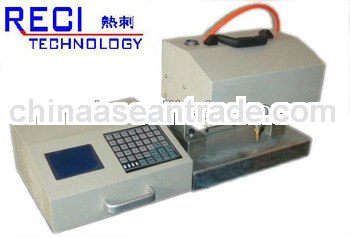

Multipurpose Dot Peen Marking Machine
Product description:
Applicable to a variety of materials, can be marking on the surface of metal or non-metallic materials
Can be marked in a variety of surface, such as planar, spherical, concave and convex.
Marking speed, the controller or computer design content and can be directly marking output.
Desktop, portable and integrated and multifunctional, etc. A variety of models can be choose.
Modular product application easier to meet your needs.
Function characteristics:
Marking needles used titanium alloy needles, make the mark effect is exquisite and smooth, greatly improving the mark quality
With servo motor drive system for the device instead of the previous step motor drive system, to ensure the dynamic property of marking process, location accurate, fast speed.
With double guide rail ball screw transmission mode, enhanced marking stability, improve the marking precision
Mark content clear, uniform depth, low noise. The noise below 70 decibels.
Mark continuously, the effect is beautiful, no splash of metal dust in the process of marking.
1. Using titanium alloy needle print, marked effect clearly
2. With special marking machine control box, light weight, small volume, convenient to carry
3. With electromagnetic adsorption device, can be attached on the frame to mark
4. Serial number automatically accumulate, VIN code automatic calculation
5. User interface friendly, easy to learn, easy to operation.
Technical Parameter:
| Marking depth | 0.1mm~1mm adjustable (Depends on different materials ) |
| Marking speed | 5--120 characters per minute |
| Marking directions | up, down, left, right, and the circular arc surface marking |
| Print range | Standard marking head:80mm*140mm Portable marking head:120mm*15mm |
| Marking character | Size, spacing can be adjusted flexibly |
| Marking contents | Chinese characters, Numbers and letters A-Z Commonly used graphic symbol Any pattern character |
| Repeat print accuracy | 0.04mm |
| Print frequency | Not less than 300 times per second |
| Working noise | ≤85db(a) |
| Environment | temperature:0-40°C humidity:<90% |
| Working voltage | 220V/380V(±10%) 50Hz(±2%) |
| Compressed air pressure | 0.3Mpa~0.8Mpa |
| Power equipment | ≤500W |

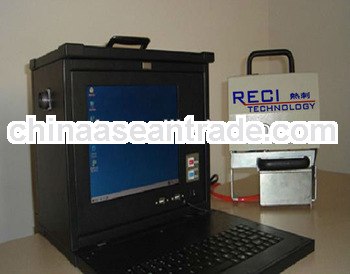

Control box:
Marking head size:
Scope of application:
Mmainly used in automobile, motorcycle, aviation, shipbuilding, oil machinery, steel, tool manufacturing, military products, fire fighting, mold and other industries.
Auto parts, metal nameplate number change parameter, auto rack, industrial signs, industrial parts, mould, industrial gifts, bearings, chips,piston ring, stainless steel tableware, electrical panels, electric panel, etc
Products:
Samples:
After sale-service:
1.One year warranty for the whole machine.
2.Teach video and detailed manual sent with the machine.
3.24 hours online support.
4.Professional technical support
5.Free design and guide for customer
6.Free software update
7.We can supply the new machine parts or fix the old one.
