Product detail:

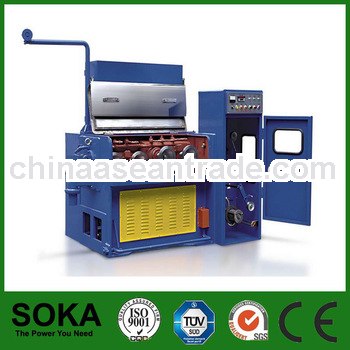

Soka brand electric wire cable making machine
Main features of our product:
1. Manufacturer(developing history more than 13 years)
2. ISO approving,ISO9001-2008
3. Best after sale service(one year warranty,longtime maintenance,supply all the spare parts)
4. Advanced technique
5. We can design the machine that meet your requirements
Usage
The machine is used for drawing coppewire.
specifiation :
Inlet wire diameter :1.0-0.5mm
Outlet wire diameter :0.25-0.07mm
Double frequency conversion control 11+4KW
Drawing speed :35m/s
Vertical four shaft,Automatic tracking synchronous collection line
Annealer
Applicable line diameter:0.10~0.32mm bare copper wire
Speed:300MPM/Max
Winding shaft size :300mm/Max Or according to your size
Tubular furnace electric heating capacity to soften :64.5KW
Copper wire bake oven electric heating capatity:3KW
single wheel lead take wheel mechanomotive force:Torque motor1.2-1.8NM
Coiling tension:25kg.cm
About the products
1 Dual inverter control and two motors type can precisely control the spool wire tension to reduce the slip ratio of wire to a minimum manner.
2 Drawing capstans arranged squarely to save space.
3 Continuous annealing machine control system control.
4 Convenient for maintain ,simple of word ,low noise ,energy saving.
5 Automatic annealing control eliminates hard wire scrap.
More fine wire drawing machines , as following :
Model | Drawing Die | Inletwire Diameter (mm) | Outletwire Diameter Range (mm) | Line Speed (mpm/max) | Main Motor Power (kw) | Spooler Motor Power (kw) | Machine Dimension (m) | Machine Weight (kg) |
JD-24VX | 24 | 0.14-0.45 | 0.025-0.08 | 1500 | 4 |
| 1.74*1.3*1.45 | 2000 |
JD-20D | 20 | 0.05-0.12 | 0.05-0.12 | 1800 | 3.7 | 2.2 | 1.90*1.35*1.75 | 1900 |
JD-22D | 22 | 0.5-1.2 | 0.1-0.32 | 2500 | 11 | 3.7 | 2.05*1.60*1.90 | 2400 |
JD-24D | 24 | 0.5-0.10 | 0.07-0.25 | 2500 | 11 | 3.7 | 2.05*1.60*1.90 | 2400 |
JD-14D | 14 | 0.8-1.6 | 0.07-0.25 | 1500 | 15 | 3.7 | 2.60*1.60*1.90 | 2200 |
Why let you choose us
1.Production experience:Absorbed ,Professional for 13years
2.Each link strict control the quality
3.Our goals are not do the lowest price to do the best quality
4. Life provides you with technical guidance
5. The long-term supply all kinds of spare parts, make sure that you use perennial
6. To offer our customers workshop design
7. Choose a professional supplier will bring you more convenient
Hengshui Jinda electromechanical Co., Ltd. Specializes in wire drawing machine,
annealed wire machine and other drawing equipment accessories. Our company
has strong technical support, including 3 senior engineers, 8 engineers and 100 skilled workers.
The company can ensure product quality and reliable performance by advanced production technology.
We have strong technical force,senior engineers and technicians team,introduce the latest technology at home and abroad.
We have a professional sale team with strict management, ready to fulfill your demand anytime.Our equipment well received
in India,Egypt,Pakistan,Vietnam,Thailand,UZbekistan,Russian federation etc. We have more after-sale office in more than
20 provinces and cities in China and provide maintenance overseas.We are hoping to broaden our potential market all over
the world.Looking forward to build a longterm partnership with you and with the efforts of both sides reach the goal of mutual benefits.
Engineers for machine’s installation and debugging in Uzbekistan
Welcome to visit our factory and we have confident that we shall be your best supplier and partner in the future!
