1

Manual Decoiler

1 set

2

Leveler

1 set

3

Punching press

1 set

4

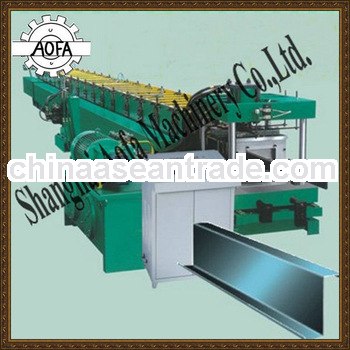

Main Forming Machine

1 set

5

Hydraulic Station

1 set

6

Hydraulic Cutting Device

1 set

7

PLC Control System

1 set

8

Run Out Table

1 set

Items

Parameter

Adapted raw material

Type

mild steel ,Galvanized strip coil and others

Hardness of sheet

≥350Map

Thickness of sheet

1~2.5 mm

Roll forming speed

10~15 m/min

Guding device

A pair of horizontal roller and two pairs of vertical guide rolls, total 1 sets

Leveling device

11 rolls, up 4/down 5, the residual 2 rolls is clamp deliver rolls

Roller material

45# steel polished and coated with chrome HRC55-60°

Roller stands

15

Shaft diameter

70mm

Shaft material

high grade No.45 steel after treatment

Air supply

Flow rate

0.5m3/min

Pressure

0.7MPa

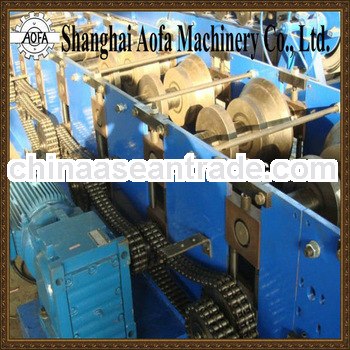

Driving way

chain driving

Punching device

Each kind of width specification 1 set dies

Punching die

Cr12 quench

Cutting type

hydraulic cutting after forming

Blade material

Cr12 steel after treatment

Main power

About 15KW

Hydraulic power

11kw

Controlling system

PLC Frequency Control System with touch screen

If buyers visit our factory and check the machine,

we will teach you how to install and use the machine,

and also train your workers/technician face to face.
Without visiting,we will send you user manual and

video to teach you to install and operate.
If buyer needs our technician to go to your local factory,

please arrange board and lodging and other necessary things.
